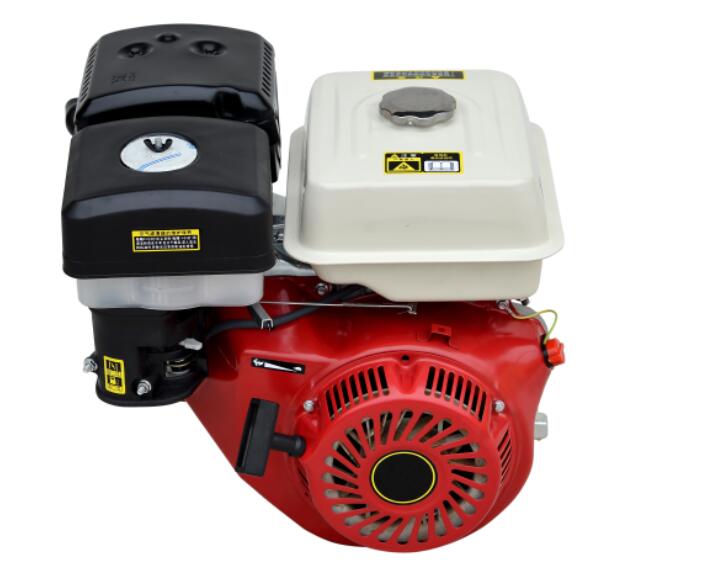

389cc 13hp 9.6kw honda gasoline engine the motor engine gx39


parameter Model ING188F
Horsepower 13HP
Type OHV,25°Tilt,single cylinder,
forced air cooling,4-stroke
max output (hp/rpm) 13/3600
max torque(N.m/rpm) 26.5/2500
bore×stroke(mm) 88×64
displacement 389ml
compression ratio 8.0:1
start system recoil start
Fuel tank capacity 6.5L
oil capacity 1.1L
lubricationg type splashing
fuel consumption ≤374g/kw.h
  Noise(Away from 7m)［db(A)］ 74
Net Weight(Kg) 34kg
Gross Weight(Kg) 35kg
