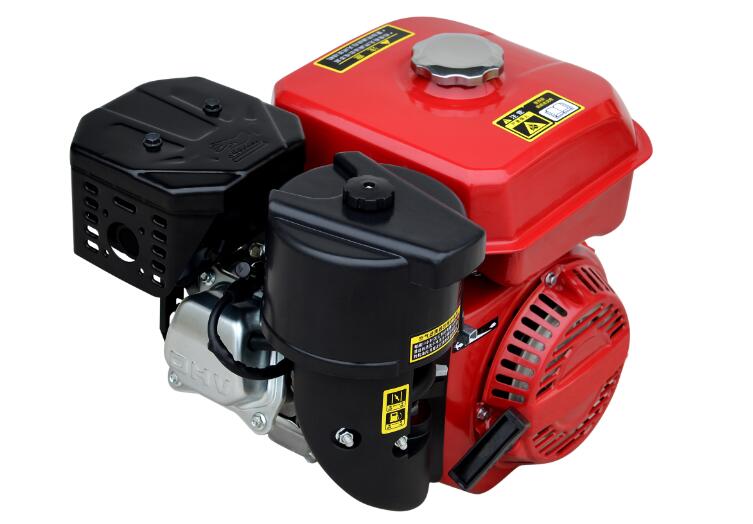

170F Air cooled 7hp 4 Stroke OHV Structure Gasoline Petrol E

parameter Model ING170F
Horsepower 7HP
Type OHV,25°Tilt,single cylinder,
forced air cooling,4-stroke
max output (hp/rpm) 7.0/3600
max torque(N.m/rpm) 4.5/2500
bore×stroke(mm) 70×54
displacement 210ml
compression ratio 8.5:1
start system recoil start
Fuel tank capacity 3.6L
oil capacity 0.6L
lubricationg type splashing
fuel consumption ≤374g/kw.h
  Noise(Away from 7m)［db(A)］ 74
Net Weight(Kg) 20.5kg
Gross Weight(Kg) 21kg
