168F Air Cooled 196cc 4 Stroke OHV Gasoline Engine 6.5hp

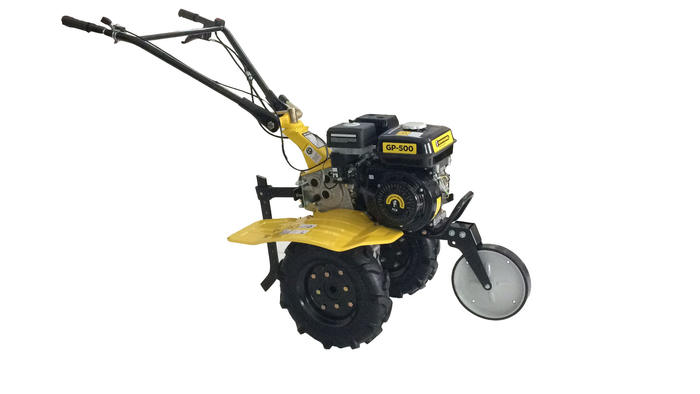

ING500

主页 > Product > Power tiller > ING500 >

motoblok

Tiller Type: Gasoline Power Tiller
Tilling Depth 150-300mm
Tiller Breadth 500-900mm
Gearshif Speed -1,0,2,1
Blades Type 24 Pcs/(3+1)Group×3
Transmission Belt Driving
Gearbox  Aluminium Gear Box
Mower connect With
Pulley 2 step pully,3 step pully optional
Wheel 350-6,400-8,400-10 optional
Engine Model ING170f  7HP
Engine Type OHV,25°Tilt,single cylinder,
forced air cooling,4-stroke
Displacement 210ml(cc)
Bore x stroke 70×54(mm)
max output  7.0/3600(hp/rpm)
Fuel tank capacity 3.6L
oil capacity 0.6L
Starting System Recoil Start(Hand Start)
Packing Cartoon,iron construction inside
